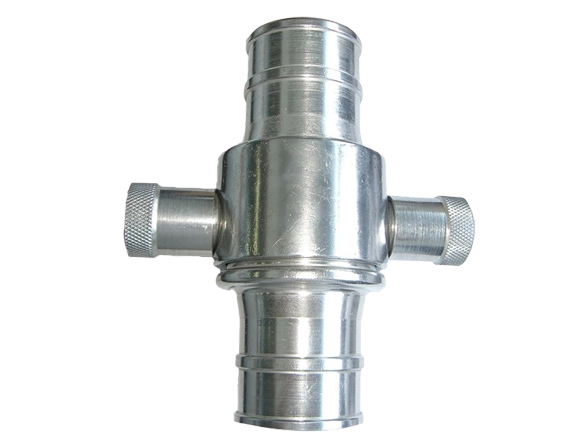

Instantaneous fire hose coupling also calls john morris coupling, BS coupling, instantaneous coupling or BS336 coupling. They are widely used in british commonwealth of nations. They are important fire-fighting equipment. They are applied by fire brigades and all fire related installations.
Instantaneous fire hose coupling is a good solution for water supply. They are made of male coupling and female coupling. The plunger mechanisms inside female coupling are controlled by springs . There is a groove on the male. The plunger and groove forms seamless connection.
Instantaneous coupling is assembled to fire hose. In general, female BS336 fire hose coupling is connected to fire nozzle and male coupling is connected to fire hydrant or fire pump.

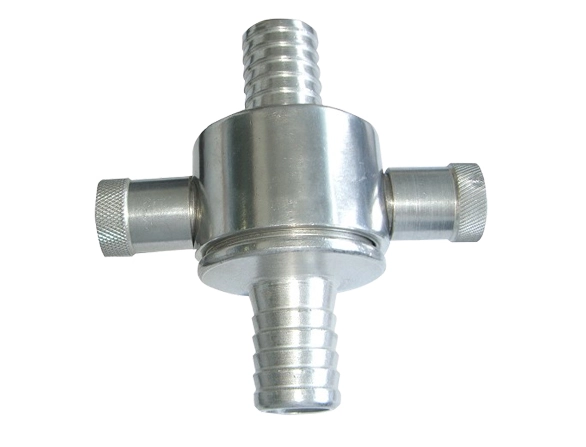

There are two kinds hose tail. One is serrated hose. Another is double ribbed hose tail. We produce instantanesous fire hose coupling as BS336 standard.
Material: aluminum, brass, bronze
Working pressure: 15bars
| Instantaneous fire hose coupling-ribbed type | |
| SIZE | PART # |
| 1 1/2" X 1 1/2" | JMCR 150X150 |
| 1 1/2" X 2 1/2" | JMCR 150X250 |
| 2" X 2" | JMCR 200X200 |
| 2" X 2 1/2" | JMCR 200X250 |
| 2 1/2" X 2 1/2" | JMCR 250X250 |
