Application:
Suitable for industrial vacuum cleaners with large wear and tear, sweepers, quartz powder, glass debris, etc.
Features:

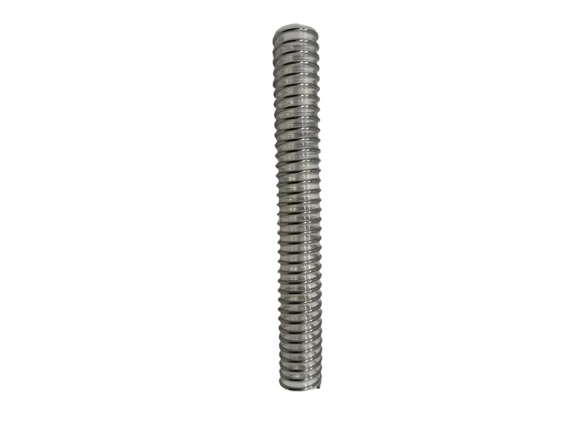

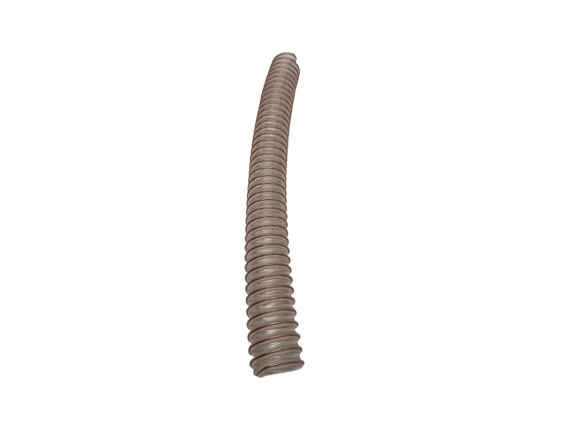

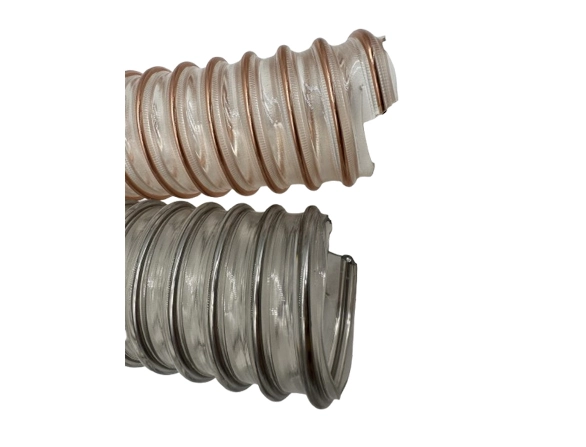

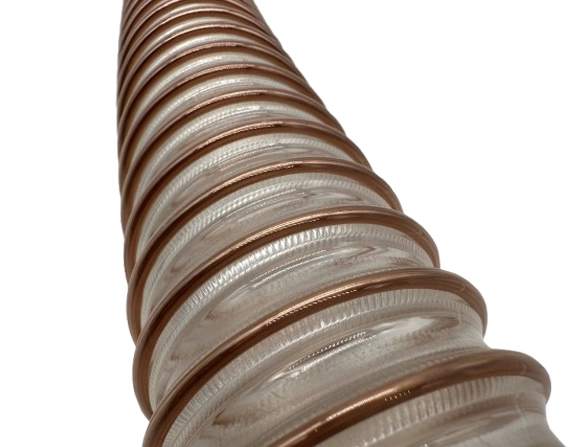

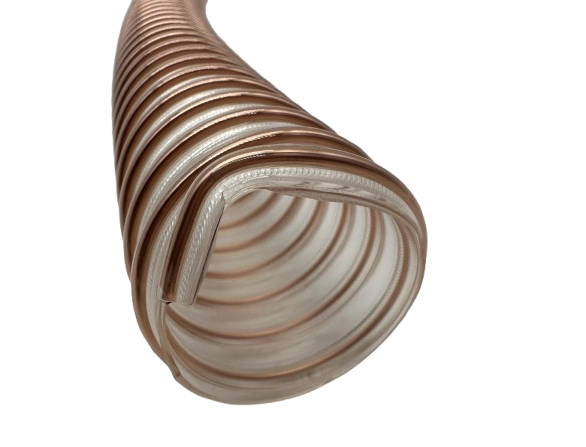

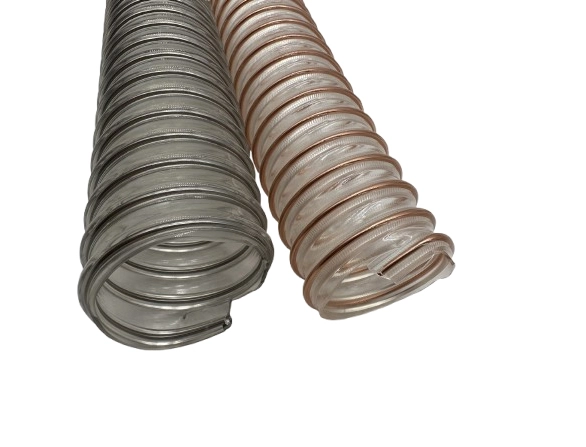

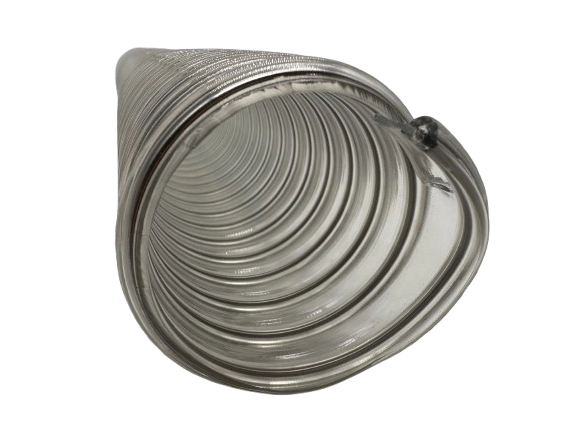

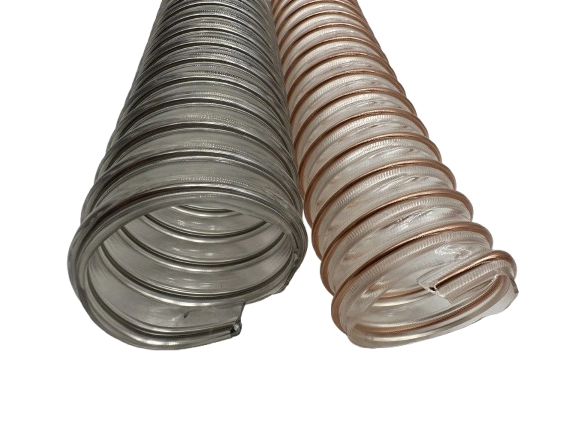

The thickness of the PU coating around the steel wire is not less than 0.9mm. The product has strong wear resistance, weather resistance, tear resistance, high transparency, light weight, flexible bending, non-toxic, odorless, halogen-free, etc. The service life can reach 2-4 times that of ordinary products.
Temperature range:
-40℃ to +90℃ (up to +125℃ for short-term use)
| I.D MM | THICKNESS MM | OPERATING PRESSURE BAR | VACUUM PRESSURE BAR | LENGTH M |
| 25 | 0.90 | 2.700 | 0.500 | 10 |
| 30 | 0.90 | 2.260 | 0.480 | 10 |
| 32 | 0.90 | 2.120 | 0.460 | 10 |
| 38 | 0.90 | 1.795 | 0.460 | 10 |
| 40 | 0.90 | 1.710 | 0.420 | 10 |
| 45 | 0.90 | 1.400 | 0.380 | 10 |
| 50 | 0.90 | 1.370 | 0.365 | 10 20 |
| 60 | 0.90 | 1.150 | 0.285 | 10 20 |
| 64 | 0.90 | 1.100 | 0.270 | 10 20 |
| 70 | 0.90 | 0.990 | 0.210 | 10 20 |
| 75 | 0.90 | 0.920 | 0.195 | 10 20 |
| 80 | 0.90 | 0.860 | 0.175 | 10 20 |
| 90 | 0.90 | 0.770 | 0.155 | 10 20 |
| 100 | 0.90 | 0.690 | 0.120 | 10 20 |
| 110 | 0.90 | 0.630 | 0.110 | 10 20 |
| 115 | 0.90 | 0.605 | 0.105 | 10 20 |
| 120 | 0.90 | 0.580 | 0.105 | 10 20 |
| 125 | 0.90 | 0.560 | 0.085 | 10 20 |
| 130 | 0.90 | 0.560 | 0.085 | 10 20 |
| 140 | 0.90 | 0.495 | 0.085 | 10 20 |
| 150 | 0.90 | 0.460 | 0.075 | 10 20 |
| 160 | 0.90 | 0.435 | 0.065 | 10 20 |
| 170 | 0.90 | 0.410 | 0.065 | 10 20 |
| 175 | 0.90 | 0.400 | 0.055 | 10 20 |
| 180 | 0.90 | 0.385 | 0.050 | 10 20 |
| 200 | 0.90 | 0.350 | 0.040 | 10 20 |
| 225 | 0.90 | 0.310 | 0.039 | 10 |
| 250 | 0.90 | 0.280 | 0.020 | 10 |
| 275 | 0.90 | 0.255 | 0.020 | 10 |
| 300 | 0.90 | 0.230 | 0.018 | 10 |
| 325 | 0.90 | 0.130 | 0.019 | 10 |
| 350 | 0.90 | 0.115 | 0.010 | 10 |
