T-Bolt Clamp
Hose Fittings
T-bolt Hose Pipe Clamp

T-Bolt Clamp

  • T-bolt Hose Pipe Clamp
  • China T-bolt Hose Pipe Clamps
  • Hose Pipe Clamp With T-bolt

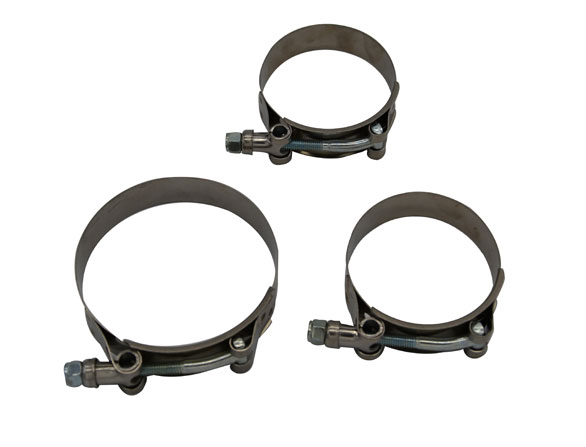

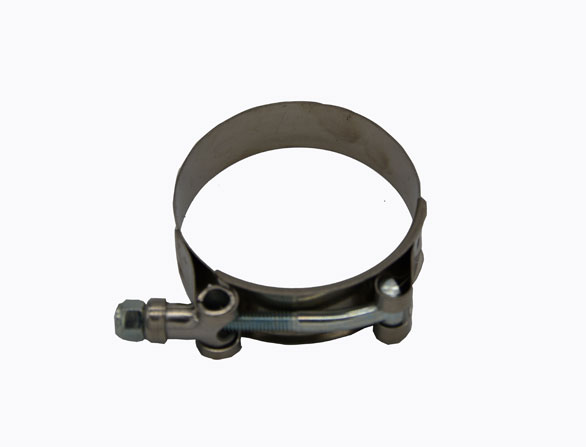

T-bolt hose clamps help provide uniform sealing pressure when used in high-vibration or large-diameter applications. Use 300 stainless steel T-bolt clamps for a reliable seal on heavy trucks and industrial machinery and equipment.

T-bolt hose clamps are hose fittings used to seal liquid or air connections on hoses and are equipped with a T-bolt tightened by a hex-nut.

Bridge: Channel or floating bridge
Screw: T-bolts head carbon steel or T-bolts head stainless steel
Nut: Hex lockout
Band and bridge: plate material 300 stainless steel

T-BOLT CLAMP

PART #

MIN SIZE

MAX SIZE

CLAMP-T-022

1.38"

1.52"

CLAMP-T-024

1.5"

1.64"

CLAMP-T-026

1.63"

1.88"

CLAMP-T-028

1.75"

2"

CLAMP-T-030

1.88"

2.13"

CLAMP-T-032

2"

2.25"

CLAMP-T-034

2.13"

2.38"

CLAMP-T-036

2.25"

2.56"

CLAMP-T-038

2.38"

2.69"

CLAMP-T-040

2.5"

2.81"

CLAMP-T-042

2.63"

2.94"

CLAMP-T-044

2.75"

3.06"

CLAMP-T-046

2.88"

3.19"

CLAMP-T-049

3.06"

3.38"

CLAMP-T-052

3.25"

3.56"

CLAMP-T-054

3.38"

3.69"

CLAMP-T-057

3.56"

3.88"

CLAMP-T-061

3.81"

4.13"

CLAMP-T-065

4.06"

4.38"

CLAMP-T-069

4.31"

4.63"

CLAMP-T-073

4.56"

4.88"

CLAMP-T-077

4.81"

5.13"

CLAMP-T-081

5.06"

5.38"

CLAMP-T-085

5.31"

5.63"

CLAMP-T-089

5.56"

5.88"

CLAMP-T-096

6"

6.31"

CLAMP-T-100

6.25"

6.56"

CLAMP-T-104

6.5"

6.81"

CLAMP-T-108

6.75"

7.06"

CLAMP-T-116

7.25"

7.56"

CLAMP-T-124

7.75"

8.06"

CLAMP-T-132

8.25"

8.56"

CLAMP-T-135

8.44"

8.75"

CLAMP-T-148

9.25"

9.56"

CLAMP-T-164

10.25"

10.56"
