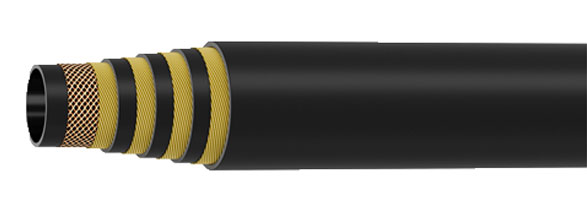

SAE 100R 15
Hose
sae 100r 15

SAE 100R 15

Hose Construction:
Inner tube: oil resistant synthetic rubber
Reinforcement: four or six high tensile steel wire spiral
Cover: oil, abrasion, weather resistant synthetic rubber
Working Temp.: -40℃ up to +121℃
Applications:
Very high pressure applications subject to surge or flexing such as construction equipments, mining and the high performance industrial market

  • sae 100r 15
Inside Diameter Reinforcement Diameter Outside Diameter WP BP Min. Bend Radius Weight
inch mm mm mm psi bar psi bar mm kg/m
3/8 9.3-10.1 20.3 23.3 6090 420 24360 1680 150 0.8
1/2 12.3-13.5 24 26.8 6090 420 24360 1680 200 0.95
3/4 18.6-19.8 32.9 36.1 6090 420 24360 1680 265 1.85
1 25.0-26.4 38.9 42.9 6090 420 24360 1680 330 2.9
1-1/4 31.4-33.0 48.4 51.5 6090 420 24360 1680 445 4.2
1-1/2 37.7-39.3 56.3 59.6 6090 420 24360 1680 530 5.6
Recommended Products
Hose
Hose Fittings
Contact Us
Have a question ?
Get in touch
Email us with any questions or inquiries or use our contact data. We would be happy to answer your questions.
Related News

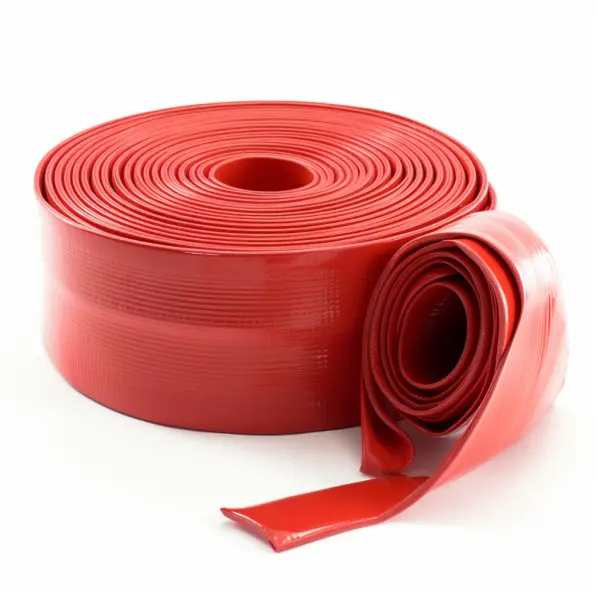

  • Advantages and Applications of PVC Garden Water Hoses
