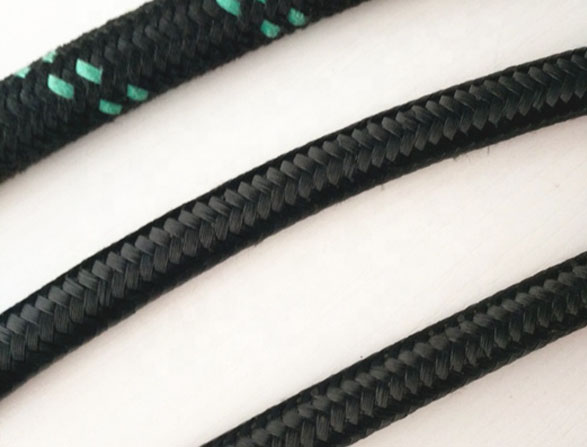

SAE 100 R5

Two Wire Hydraulic Hoses SAE 100R5 | Medium Pressure
SAE J1402 Type II, D.O.T. FMVSS 106 Type All | Truck Hose

Recommended for air brake, fuel, grease lines, high temperature petroleum oils and medium pressure hydraulic applications. Sizes -16 thru -24 are not SAE or DOT approved for air brake applications.

Application: General purpose, medium pressure applications including petroleum based hydraulic oil, air and water for use in air brakes, power steering, turbo oil lines, tilt cab cylinders, transmission coolant and filtration lines.
Inner Tube: oil resistant Nittrile synthetic rubber.
Reinforcement: one fiber braid and one steel wire braid.
Cover Compound: Impregnated fiber braid.
Temperature Range: - 40ºC to + 100ºC.

Hose ID		Hose OD	WP		BP		Minimum Bend Radius	Weight
inch	mm	mm	Mpa	Psi	Mpa	Psi	mm	kg/m
3/16	4.8	13.2	20.7	3000	82.7	12000	76	0.24
1/4	6.4	14.8	20.7	3000	82.7	12000	86	0.29
1/3	7.9	17.1	15.5	2250	62.1	9000	102	0.36
13/32	10.3	19.5	13.8	2000	55.2	8000	117	0.48
1/2	12.7	23.4	12.1	1750	48.3	7000	140	0.55
5/8	15.9	27.4	10.3	1500	41.4	6000	165	0.65
7/8	22.2	31.4	5.5	800	22.1	32000	187	0.69
1 1/8	28.6	38.1	4.3	625	17.2	25000	229	0.84
1 3/8	35	44.4	3.4	500	13.8	2000	267	1.03
1 4/5	46	56.4	2.4	350	9.6	14000	337	1.26
2 3/8	60.5	73	2.4	350	9.6	14000	610	2
3	76.5	90.5	1.4	200	5.6	800	840	3
