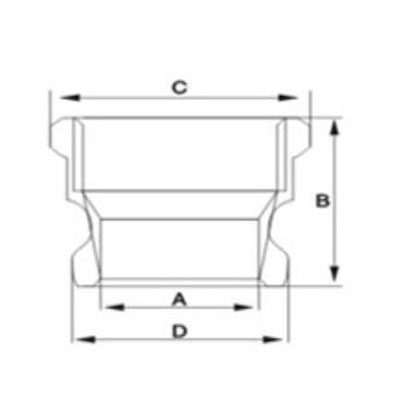

| PART # | PART # | SIZE (MM) | DIM (INCH) | A (MM) | B (MM) | C (MM) | D (MM) |
| CLA050-SS304 | CLA050-SS316 | 13 | 1/2 | 14.5 | 36 | 26 | 24 |
| CLA075-SS304 | CLA075-SS316 | 20 | 3/4 | 21 | 39.5 | 31 | 31.3 |
| CLA100-SS304 | CLA100-SS316 | 25 | 1 | 24 | 45.5 | 39 | 26.3 |
| CLA125-SS304 | CLA125-SS316 | 32 | 1 1/4 | 30 | 54 | 48 | 45.3 |
| CLA150-SS304 | CLA150-SS316 | 40 | 1 1/2 | 38 | 55 | 54 | 53 |
| CLA200-SS304 | CLA200-SS316 | 50 | 2 | 47 | 60 | 66 | 63 |
| CLA250-SS304 | CLA250-SS316 | 65 | 2 1/2 | 59 | 72 | 82 | 75.3 |
| CLA300-SS304 | CLA300-SS316 | 80 | 3 | 76 | 69 | 95 | 91.3 |
| CLA400-SS304 | CLA400-SS316 | 100 | 4 | 102 | 72 | 122 | 119 |
| CLA500-SS304 | CLA500-SS316 | 125 | 5 | 127 | 72 | 150 | 145 |
| CLA600-SS304 | CLA600-SS316 | 150 | 6 | 154 | 72 | 178 | 175 |

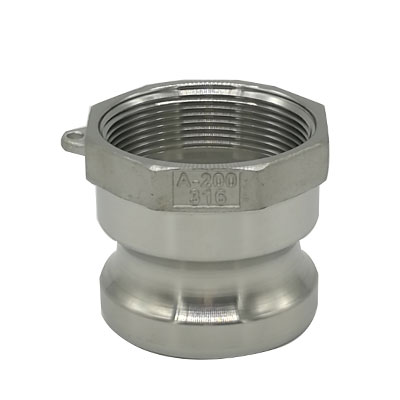

Material: SS304 camlock coupling, SS316 camlock coupling
Standard: MIL-C-27487
