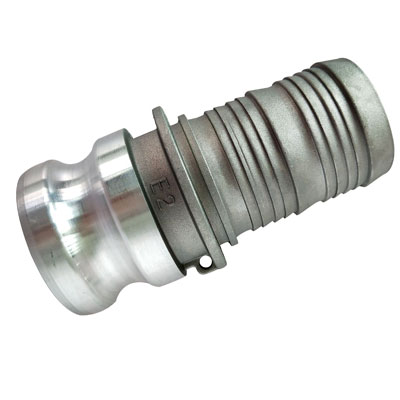

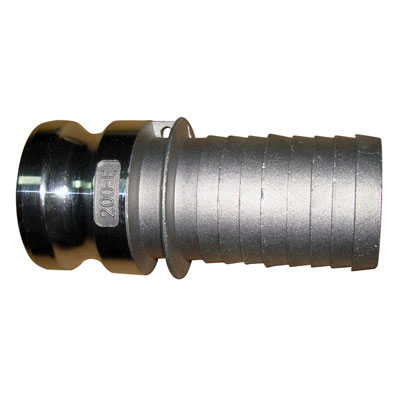

Aluminium Male Camlock Coupling Type E
Aluminium Camlock Male Coupling Type-E

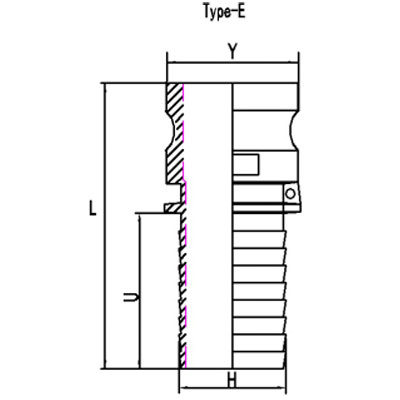

Specification of Aluminium Male Camlock Coupling Type E
|
Part No.
|
Type
|
DN
|
Inch
|
H
|
U
|
Y
|
|
QC-E050
|
50
|
13
|
1/2"
|
14-14.5
|
39.5
|
24.3
|
|
QC-E075
|
75
|
20
|
3/4"
|
20.5-21
|
50.7
|
32.04
|
|
QC-E100
|
100
|
25
|
1"
|
27-27.5
|
55.2
|
36.66
|
|
QC-E125
|
125
|
32
|
1-1/4"
|
33.5-34.5
|
55.2
|
45.46
|
|
QC-E150
|
150
|
40
|
1-1/2"
|
40-41
|
76.1
|
53.4
|
|
QC-E200
|
200
|
50
|
2"
|
51-52.5
|
75.5
|
63.03
|
|
QC-E250
|
250
|
65
|
2-1/2"
|
65.5-66.5
|
92.9
|
75.76
|
|
QC-E300
|
300
|
80
|
3"
|
77.5-78.5
|
99.4
|
91.48
|
|
QC-E400
|
400
|
100
|
4"
|
103-104
|
108.5
|
119.52
|
|
QC-E500
|
500
|
125
|
5"
|
129-130
|
128.5
|
145.2
|
|
QC-E600
|
600
|
150
|
6"
|
154-155.5
|
172
|
175.93
|
|
QC-E800
|
800
|
200
|
8"
|
205.4-205.6
|
190
|
231.14
|
