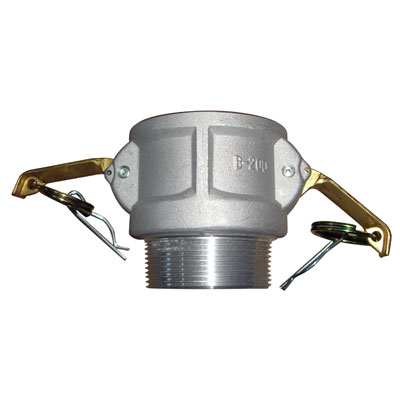

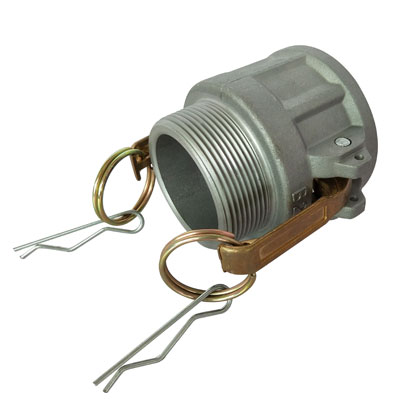

Aluminium Female Camlock Coupling Type B
Aluminium Camlock Female Coupling Type-B

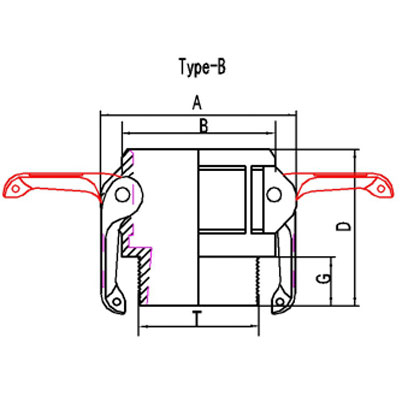

Specifications of Aluminium Female Camlock Coupling Type B
|
Part No.
|
Type
|
DN
|
Inch
|
A
|
B
|
D
|
G
|
T
|
|
QC-B050
|
50
|
13
|
1/2"
|
44.7
|
32.7
|
48.2
|
17.8
|
BSP/NPT
|
|
QC-B075
|
75
|
20
|
3/4"
|
61.35
|
41.5
|
52.75
|
19.5
|
BSP/NPT
|
|
QC-B100
|
100
|
25
|
1"
|
67.7
|
46.5
|
62
|
22
|
BSP/NPT
|
|
QC-B125
|
125
|
32
|
1-1/4"
|
79.3
|
58.3
|
66
|
19.6
|
BSP/NPT
|
|
QC-B150
|
150
|
40
|
1-1/2"
|
87.6
|
67.5
|
71
|
25.8
|
BSP/NPT
|
|
QC-B200
|
200
|
50
|
2"
|
97
|
75.3
|
76.5
|
23.8
|
BSP/NPT
|
|
QC-B250
|
250
|
65
|
2-1/2"
|
110.2
|
91.8
|
85.5
|
30
|
BSP/NPT
|
|
QC-B300
|
300
|
80
|
3"
|
131.4
|
108.5
|
91.5
|
32.3
|
BSP/NPT
|
|
QC-B400
|
400
|
100
|
4"
|
159.5
|
139.1
|
94.6
|
36.4
|
BSP/NPT
|
|
QC-B500
|
500
|
125
|
5"
|
188.4
|
168.4
|
97
|
37
|
BSP/NPT
|
|
QC-B600
|
600
|
150
|
6"
|
240
|
199.6
|
103.75
|
41
|
BSP/NPT
|
|
QC-B800
|
800
|
200
|
8"
|
298.45
|
257.17
|
140
|
44.52
|
BSP/NPT
|
