Aluminium Female Camlock Coupling Type D

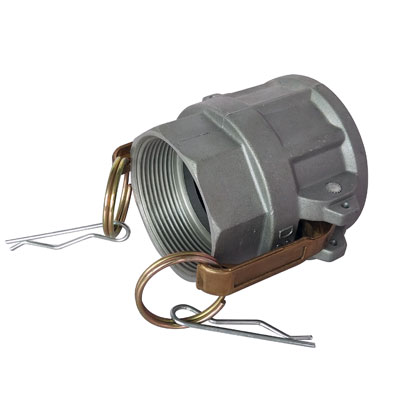

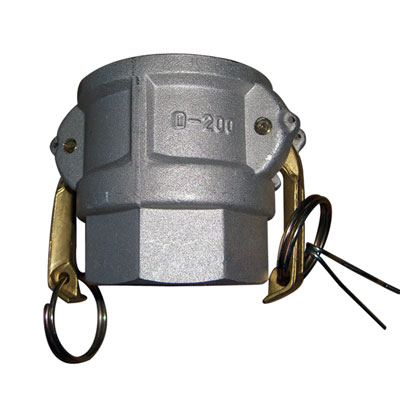

Aluminium Camlock Female Coupling Type-D
Specification of Aluminium Female Camlock Coupling Type D
|
Part No.
|
Type
|
DN
|
Inch
|
A
|
B
|
C
|
J
|
Q
|
T
|
|
QC-D050
|
50
|
13
|
1/2"
|
44.7
|
32.7
|
18.5
|
46.6
|
27
|
BSP/NPT
|
|
QC-D075
|
75
|
20
|
3/4"
|
61.35
|
41.5
|
20.2
|
53.5
|
32.5
|
BSP/NPT
|
|
QC-D100
|
100
|
25
|
1"
|
67.7
|
46.5
|
19.8
|
60
|
38.5
|
BSP/NPT
|
|
QC-D125
|
125
|
32
|
1-1/4"
|
79.3
|
58.3
|
24.4
|
70.5
|
48.5
|
BSP/NPT
|
|
QC-D150
|
150
|
40
|
1-1/2"
|
87.6
|
67.5
|
26
|
72.8
|
56.5
|
BSP/NPT
|
|
QC-D200
|
200
|
50
|
2"
|
97
|
75.3
|
23.5
|
76
|
66
|
BSP/NPT
|
|
QC-D250
|
250
|
65
|
2-1/2"
|
110.2
|
91.8
|
28.8
|
84.4
|
82.2
|
BSP/NPT
|
|
QC-D300
|
300
|
80
|
3"
|
131.4
|
108.5
|
32.8
|
93.1
|
96.8
|
BSP/NPT
|
|
QC-D400
|
400
|
100
|
4"
|
159.5
|
139.1
|
36
|
95
|
126
|
BSP/NPT
|
|
QC-D500
|
500
|
125
|
5"
|
188.4
|
168.4
|
36
|
96
|
152
|
BSP/NPT
|
|
QC-D600
|
600
|
150
|
6"
|
240
|
199.6
|
37
|
99.75
|
181
|
BSP/NPT
|
|
QC-D800
|
800
|
200
|
8"
|
298.45
|
257.17
|
52.68
|
146.05
|
/
|
BSP/NPT
|
