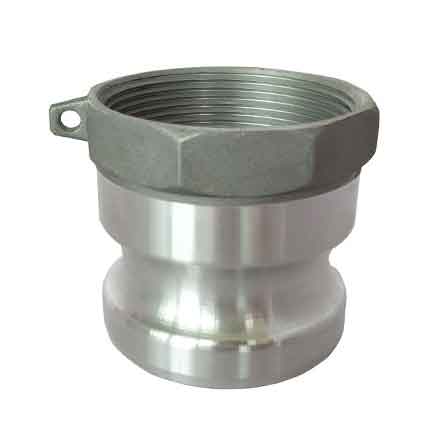

Aluminium Female Camlock Coupling Type A
Aluminium Camlock Female Coupling Type-A

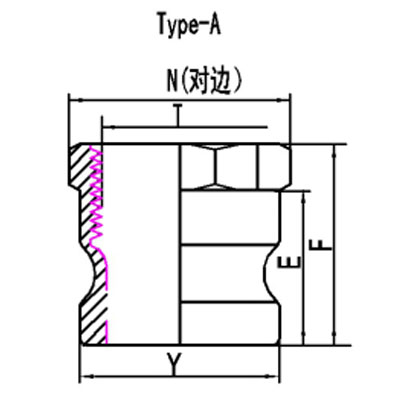

Specification of Aluminium Female Camlock Coupling Type A
|
Part No.
|
Type
|
DN
|
Inch
|
E
|
F
|
N
|
T
|
Y
|
|
QC-18050
|
50
|
13
|
1/2"
|
26.5
|
40.2
|
24.6
|
BSP/NPT
|
24.3
|
|
QC-18075
|
75
|
20
|
3/4"
|
26.2
|
41.4
|
32.1
|
BSP/NPT
|
32.04
|
|
QC-18100
|
100
|
25
|
1"
|
33.1
|
49.4
|
38.5
|
BSP/NPT
|
36.66
|
|
QC-18125
|
125
|
32
|
1-1/4"
|
39.3
|
55
|
48.4
|
BSP/NPT
|
45.46
|
|
QC-18150
|
150
|
40
|
1-1/2"
|
42.3
|
56.4
|
57.7
|
BSP/NPT
|
53.4
|
|
QC-18200
|
200
|
50
|
2"
|
48.2
|
62.8
|
66.6
|
BSP/NPT
|
63.03
|
|
QC-18250
|
250
|
65
|
2-1/2"
|
49
|
71.6
|
82.6
|
BSP/NPT
|
75.76
|
|
QC-18300
|
300
|
80
|
3"
|
51.1
|
71
|
97
|
BSP/NPT
|
91.48
|
|
QC-18400
|
400
|
100
|
4"
|
52.7
|
75.3
|
125.4
|
BSP/NPT
|
119.52
|
|
QC-18500
|
500
|
125
|
5"
|
50.6
|
71.6
|
/
|
BSP/NPT
|
145.2
|
|
QC-18600
|
600
|
150
|
6"
|
61.3
|
78.4
|
/
|
BSP/NPT
|
175.93
|
|
QC-18800
|
800
|
200
|
8"
|
86.36
|
118.11
|
/
|
BSP/NPT
|
231.14
|
